Welding Machine

We are manufacturer & supplier of welding & cutting equipments, systems required for welding automation, welding & cutting, accessories & consumables. Our products are manufactured by using quality material & right procedure & are known for one of the quality products suppliers in the market.



Arc Welding

RVS Technologies MMA Welding machines are inverter based Power efficient machines. They are widely used for manual metal arc welding with Basic, rutile & acid coated electrodes, which offers , rutile & acid coated electrodes, which offers excellent welding performance. excellent welding performance.

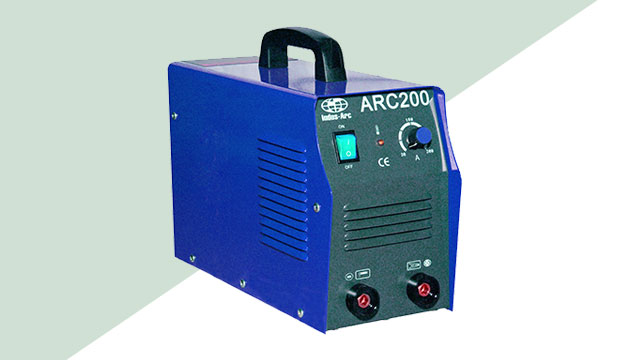

Arc 200
ARC 200 amps

ARC 200 Inverter welding machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Model: Indus ARC
  • Input Voltage AC : 230V, 1Ph
  • Output Current Range (A): 20 - 200
  • Rated Duty Cycle: 40%
  • Efficiency: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 8
  • Dimensions (mm): 317 x 155 x 295
Enquire Now

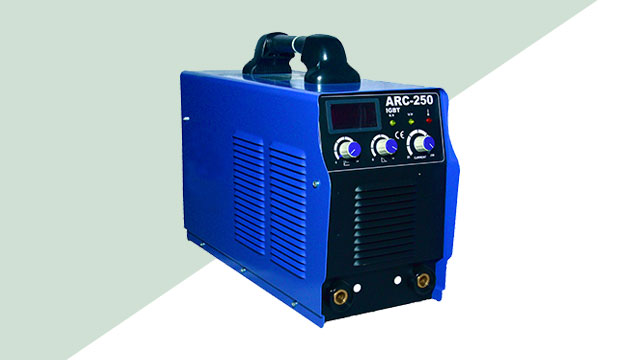

Arc 250
ARC 250 amps

ARC 250 Inverter welding machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Model: Indus ARC
  • Input Voltage AC : 415V, 3Ph
  • Output Current Range (A): 20 - 250
  • Rated Duty Cycle: 60%
  • Efficiency: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 17.2
  • Dimensions (mm): 425 x 205 x 355
Enquire Now

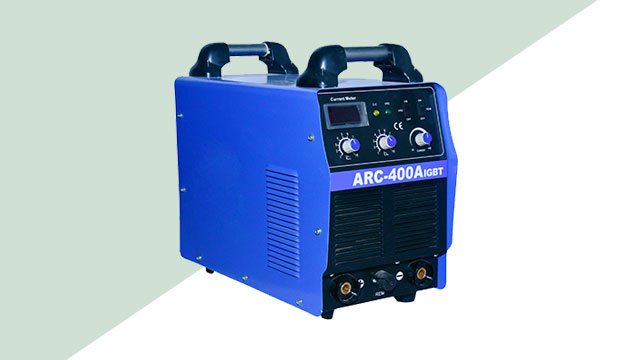

Arc 400
ARC 400 amps

ARC 400 Inverter welding machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Model: Indus ARC
  • Input Voltage AC : 415V, 3Ph
  • Output Current Range (A): 20 - 400
  • Rated Duty Cycle: 60%
  • Efficiency: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 32
  • Dimensions (mm): 600 x 300 x 600
Enquire Now

CO2 Mig/Mag welding

RVS Technologies CO2/MIG/MAG welding machines are IGBT inverter base, digital controlled, power efficient machines. Machines are widely used for solid, flux core, MS, SS Auto Components, light, medium, heavy, manual, automatic welding application. Which offers excellent welding performance.

CO2 Mig/Mag welding - 250 amps

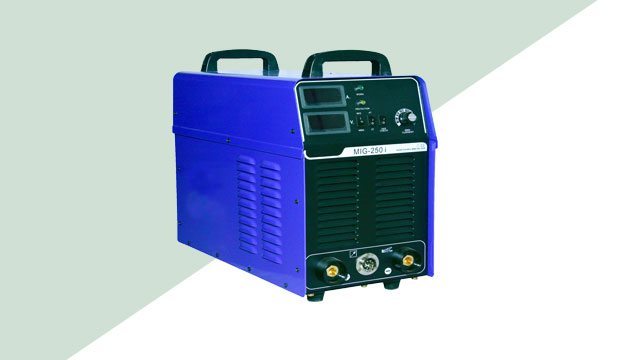

MIG 250i

MIG-200 is an IGBT based inverter welding power source fitted with a powerful servo motor designed for very high productivity welds.

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 50 - 250
  • Rated Duty Cycle: 60%
  • Wire Size (mm): 0.8
  • Efficiency %: 85
  • Power Factor ( COS Ø): 0.93
  • Weight KG: 35
  • Dimensions (mm): 655 x 295 x 610
Enquire Now

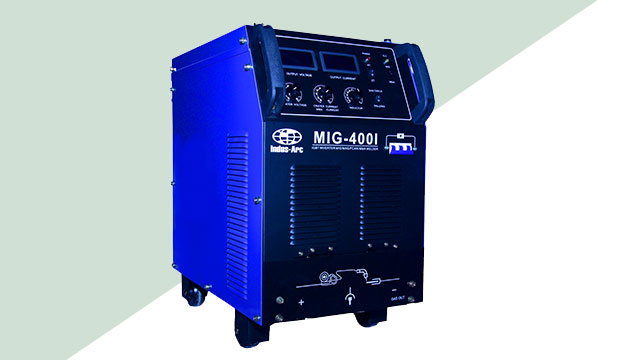

MIG 400i
MIG 400i

MIG 400i is an IGBT based inverter welding power source fitted with a powerful servo motor designed for very high productivity welds.

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 50 - 400
  • Rated Duty Cycle: 60%
  • Wire Size (mm): 0.8,1.2
  • Efficiency %: 85
  • Power Factor ( COS Ø): 0.93
  • Weight KG: 38
Enquire Now
MIG 400i/ 500i
MIG 400i/ 500i

MIG 400i/ 500i is an IGBT based inverter welding power source fitted with a powerful servo motor designed for very high productivity welds.

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 50 – 400/500
  • Rated Duty Cycle: 60%
  • Wire Size (mm): 0.8,1.2/0.8,1.2,1.6
  • Efficiency %: 85
  • Power Factor ( COS Ø): 40/54
  • Weight KG: 40/54
  • Dimensions (mm): 670 x 320 x 560
Enquire Now

Advance Mig/Mag Welding

Machine use most advance Digital Inverter Technology with user friendly Controls. Pre-set Programs for easy parameter setting.

Advance Mig/Mag Welding - 200 amps

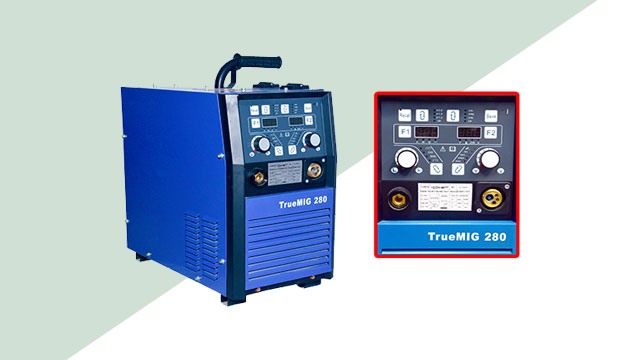

Advance Mig/Mag Welding - 280 amps

Multi process capability MIG/MAG/CO2/ Pulse MIG/ Double Pulse/ MIG Brazing. Suitable for thickness ranging from 0.8mm & above. Protection against Over Current, Overheating.

Specification

  • Input Voltage: 415 V, 3 Ph, 50 Hz
  • Input Current (A) : 14.5
  • Weight ( Kg): 35
  • Dimensions (mm): 560 X 280 X 550
  • Efficiency %: 0.85
  • Power Factor COS Ø: 0.9
  • Gun Connection type: Euro
Enquire Now

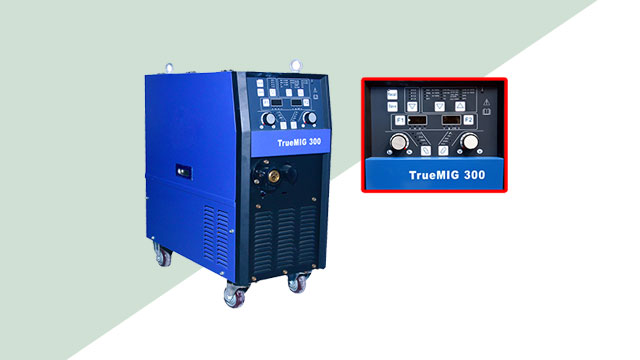

Advance Mig/Mag Welding - 300 amps
Advance Mig/Mag Welding - 300 amps

Multi process capability MIG/MAG/CO2/ Pulse MIG/ Double Pulse/ MIG Brazing. Protection against Over Current, Overheating.

Enquire Now

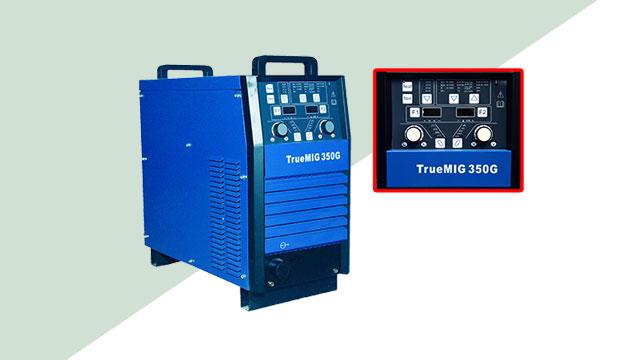

Advance Mig/Mag Welding - 350 amps
Advance Mig/Mag Welding - 350 amps

Multi process capability MIG/MAG/CO2/ Pulse MIG/ Double Pulse/ MIG Brazing. Protection against Over Current, Overheating.

Specification

  • Input Voltage: 415 V, 3 Ph, 50 Hz
  • Input Current (A) : 26.5
  • Weight ( Kg): 91
  • Dimensions (mm): 1070 X 530 X 1320
  • Efficiency %: 0.85
  • Power Factor COS Ø: 0.9
  • Gun Connection type: Euro
Enquire Now

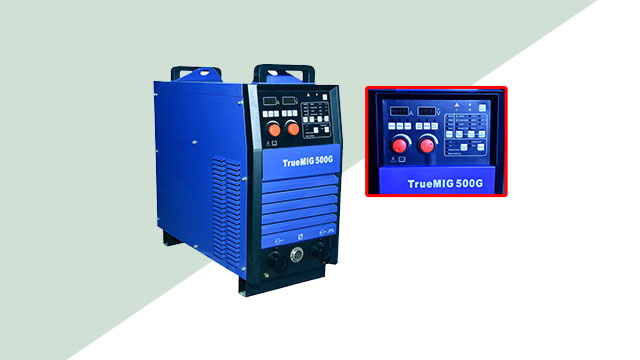

Advance Mig/Mag Welding - 500 amps
Advance Mig/Mag Welding - 500 amps

Advance Mig/Mag Welding (500 amps) machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Enquire Now

I] DC TIG Welding

RVS Technologies DC TIG Welding machines are IGBT inverter base, digital controlled, power efficient machines. They are widely used for manual / automation application for carbon steel, stainless steel, titanium and copper. TIG welding offers excellent welding performance.

DC TIG Welding  - 200 amps

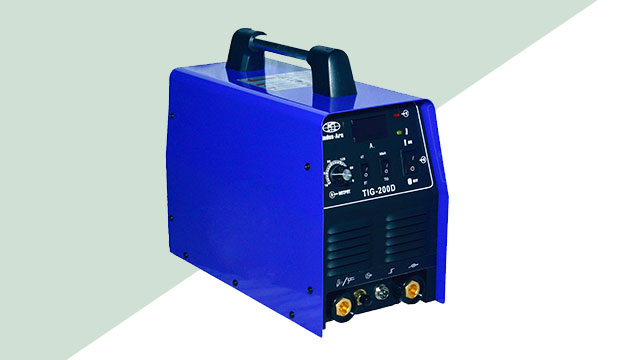

TIG 200D

DC TIG welding (200 amps) inverter machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Input Voltage AC: 230V, 1Ph
  • Output Current Range (A): 10 - 200
  • Rated Duty Cycle: 35%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 8.9Kg
  • Dimensions (mm): 367 x 185 x 320
Enquire Now
DC TIG Welding  - 400 amps
TIG 200IP

DC TIG welding (400 amps) machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Input Voltage AC: 230V, 1Ph
  • Output Current Range (A): 10 - 200
  • Rated Duty Cycle: 35%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 22Kg
  • Dimensions (mm): 530 x 247 x 500
Enquire Now
DC TIG Welding  - 400 amps

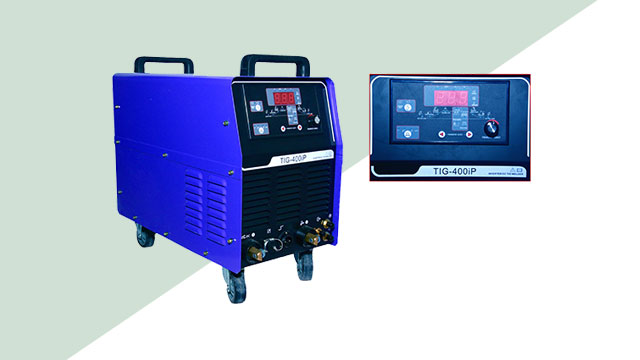

TIG 400IP

DC TIG welding (400 amps) machine is the light weight machine that allows people to carry machine on high floors and easy to travel.

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 20 – 400
  • Rated Duty Cycle: 35%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight KG: 53Kg
  • Dimensions (mm): 500 x 310 x 510
Enquire Now

II] AC/DC TIG Welding

RVS Technologies AC/DC TIG Welding machines are IGBT inverter base, Digital Controlled, Power efficient machines. They are widely used for Manual & Automation application for Aluminum, MS, SS, Titanium and Copper TIG welding, which offers excellent welding performance.

AC/DC TIG Welding - 200 amps

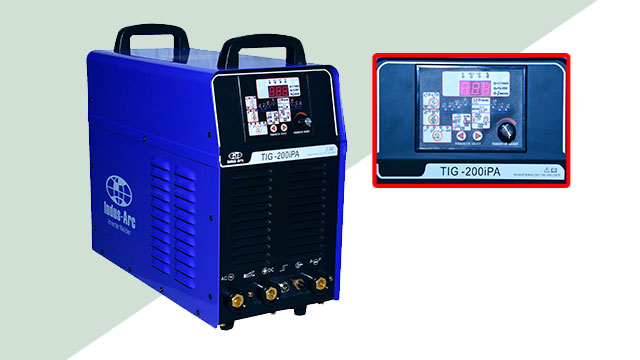

AC/DC TIG Welding - 200iPA

Below are the specifications of AC/DC TIG Welding - 200iPA

Specification

  • Input Voltage AC: 230V, 1Ph
  • Output Current Range (A): 10 - 200
  • Rated Duty Cycle: 35%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight(Kg): 27Kg
  • Dimensions(mm): 610 x 310 x 570
Enquire Now
AC/DC TIG Welding - 300 amps
AC/DC TIG Welding - 320iPA

Below are the specifications of AC/DC TIG Welding - 320iPA

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 15 - 320
  • Rated Duty Cycle: 60%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight(Kg): 37Kg
  • Dimensions(mm): 510 x 250 x 490
Enquire Now
AC/DC TIG Welding - 500 amps

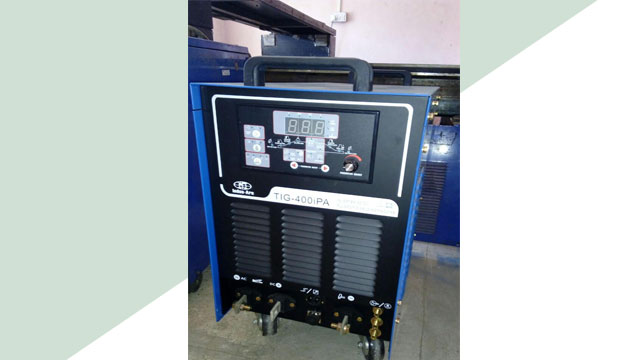

AC/DC TIG Welding - 400iPA

Below are the specifications of AC/DC TIG Welding - 400iPA

Specification

  • Input Voltage AC: 415V, 3Ph
  • Output Current Range (A): 20 – 400
  • Rated Duty Cycle: 60%
  • Efficiency %: 85%
  • Power Factor (COS Ø): 0.93
  • Weight(Kg): 35Kg
  • Dimensions(mm): 500 x 310 x 510
Enquire Now

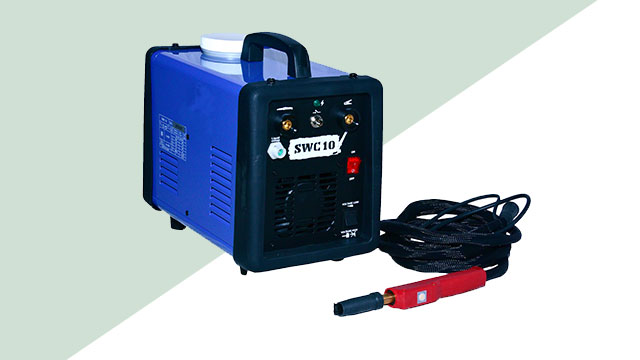

Stainless Steel Weld Cleaner

RVS Technologies has introduced unique portable machines for Stainless Steel weld cleaner. It is handy, works on 230V, doesn’t require harmful chemical for cleaning, and need not have to wait for long time. Mainly recommended to use food industries, where post cleaning with other processes is tedious job.

SAW Welding
Stainless Steel Weld Cleaner

Below are the special features of Stainless Steel Weld Cleaner

Specification

  • Model: SWC 10
  • Input Supply: 230V , 1 PH
  • Cooling: Fan
Download PDF Enquire Now
